Telescopic Operating Rod

The introduction of FRP Telescopic Multipurpose Operating Rods enjoyed instant success in Electricity Boards and Industries. The wide range acceptance is founded on it usefulness in improving safety standards in Averting Fatal Accidents During normal earthing operation as well as minimizing shutdowns due to minor maintenance problem. Blazing a trail of success, BEIMCO has ventured into the Hi-Tech During '95-'98 and after series of Research, Developed Life Saving Equipments/Equipments to improve efficiency.

For operation of D.O Fuse from Ground Level.

Telescopic Earthing Rod

Application : Earthing of High & Very high voltage lines and sub-stations.

Telescopic Tree Branch Trimmers

• Tree trimmers are designed to cut Branches and are especially useful around energized conductors or in places difficult to reach for.

• Prevents electricity failure by Rain and Cyclone

• Also useful for hilly areas where trimming is not possible form ground level.

• Tree Trimmers can be attached on Telescopic Rods.

• Available in 1, 2, 3 or 4 Section.

• Assembled height from 5 feet to 20 feet.

Telescopic Height Measuring Stick

BEIMCO Telescopic Height Measuring Stick is a multi Section tool used to Determine the Height & available clearances of overhead conductors & other types of construction near energized lines. The clear black marking on white & orange fiber glass sections are read at eye level to saw the exact ground to obstruction distance. The stick can be retracted to a 5'.6''  length for storage, on line trucks or in tool compartment.

Isolator Aligning Stick

• 630 kv. CPRI, Tested (wet)

• Aligning blades of A.B. Switches

• Hammering / Pulling / Pushing of live isolator blades up to 220 kv.

• Carrying Canvas Bag.

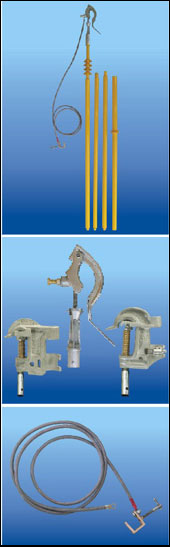

HT Earth Discharge Rod

Application : Earthing of High & Very high voltage lines and sub-stations.

Material : Fiber glass epoxy bonded class 'F' insulation, having strong Electrical & Mechanical Strength

• Smooth glossy outer surface

• Available in 2, 3 or 4 Section.

• Assembled height from 6 feet to 24 feet.

• Screw type or Push button type locking system

• Type tested 650 KV CPRI, Banglore

• Rotating type adjustable line end clamp made out of Aluminum alloy.

• Suitable for Cylindrical Conductor from 5mm to 50mm dia & 4" dia bus bar.

• Clamp provides firm grip to conductor

• Metallic Earth end clamp for earthing to be fix up with M.S. Structure.

• Transparent insulated copper cable with copper lugs from 10mm to 35mm.

FRP Birds Guards

• Prevent Birds fault.

• Protects Shackle Insulator from Dust & Rust.

• Safe Guards the line from Earth fault caused by Birds & Monkeys.

• Also Recommended for Polluted & Chemical Zone.

Isolator On/Off Handle

• Highly insulated Fiber Glass Handle.

• Very High Mechanical Strength.

• Give Mechanical Advantages in Operation.

• Prevents the danger of Electrocution / Induction, Corona Discharges while going to failure of insulator & improper earthing of structures.

• Rubber Gloves Dispense with 100% safety to operator's long life.

Telescopic Hot Switch Stick

• Available as per Clients requirements & Specifications.

• Diameter : 25mm / 32mm / 39mm / 45mm.

Universal Switch Stick

• Available as per Clients requirements & Specifications.

• Diameter : 25mm / 32mm / 39mm / 45mm.

Grip all Rod

•  Highly Insulated Glass Epoxy Rod.

• For short circuiting / Earthing / Serving hook.

• Live line Jumpering 11/33 Kv.
